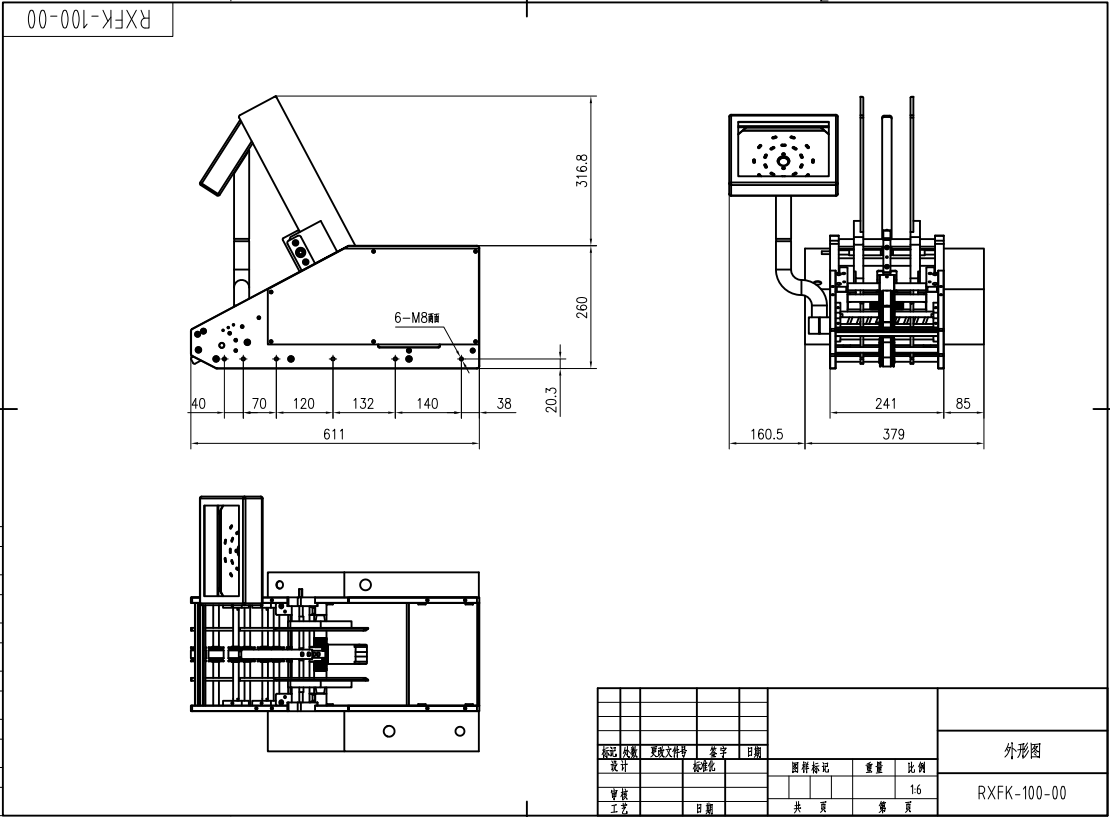

RXFK-100 Model

適用范圍

本產品將整疊片狀產品如: 明信片、賀卡、掛牌、包裝袋、未成形紙盒、標簽、信封、紅包等;

折疊狀產品如: 說明書、宣傳海報及各種不同尺寸的折疊狀產品;

本狀產品如: 說明書、卡片書、筆記本、動漫小書、雜志及各種不同尺寸的本狀產品，自動分開，成單個傳送到輸送帶上。它既能夠單獨作分卡計數使用，亦可以輕松地整合到相關聯的設備中作自動分卡、配合各種自動包裝線使用，例如: 枕式包裝機、立式包裝機、自動輸送機、自動收縮包裝機、裝箱機等。

主要性能及特點

伺服電機驅動系統，PLC控制器以及觸控界面，操作簡單易用。各種設置、操作均可在觸摸屏上輕松完成，同時具有存儲功能，設置好相關數據開機自動操作。

伺服電機Zui高速度可達到50米/分鐘。

自動發卡機對接全自動包裝機，根據不同的包裝數量快速自動發卡。

漏卡、無卡自動報警功能，可選擇發單張、多張及連續發卡功能。

采用光電控制，開啟總電源開關后，光電感應，自動發卡。

與自動化包裝設備的匹配，真正實現一體化自動包裝。

系統本身帶有多項功能設定，包括預發卡長度、每次設定發卡數量、重卡無卡片時有自動停機報警等功能，實時在線控制。

性能技術參數

Scope Of Application

This product will be stacked in sheets such as:Postcards, greeting cards, tags, packaging bags,unformedcartons,labels, envelopes, red envelopes, etc;

Folded products such as:Instructions, posters and various sizes of folding products;

This product is as follows:Manual, card book,notebook,comic book, magazine and various sizes of thisproduct, automatically separated into a sincle transmissionTo the conveyor belt.It can not only be usedfor sub card counting alone, but also can be easilyintegrated into the associated equipment for automaticcard distributionPackaqing line use, such as: pillow packaging machine, vertical packaging machine,

automatic conveyor, automatic shrink packaaina machine,packing machine, etc.

Main performance and characteristics

Servo motor drive system.PLC controller and touch interface.easy to operate.All kindsof settings and operations can be easily completed on the touch screen.At the same time,

it has the storage function, and the relevantch 50 ml min. The maximum speed of servo motor can reach 50 m / min.

The automatic card issuing machine is connected with the automatic packaging machine,and the card can be issued automatically according to the different packaging quantity.

Automatic alarm function of missing card and no card.Single card, multiple card andcontinuous card issuing function can be selected.

Photoelectric control is adopted.After the main power switch is turned on, photoelectricinduction and automatic card issuing are realized.

Real integration of packaging and automation.

The system itself has a number of functions, including pre card length, number of cards pertime, automatic stop alarm when there is no card for heavy card, and real-time online control.

Performance technical parameters
